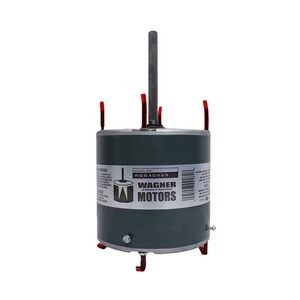

Name: Brand new ❤️ DiversiTech® 1/2 hp 1075 RPM 230V Condenser Motor ⌛
SKU: 3352539
Availability: InStock

Sale!

Original price was: $239.49.Current price is: $95.99.

SKU: 3352539 Categories: Condenser Motors, HVAC Repair Parts & Maintenance, Motors

Product guarantee 100% satisfaction
No Compromise on Quality
Get the quality you deserve, for less.
Quality Products, Quality Service

The Multi-Horsepower motors are specially designed to cover a range of applications. The condenser fan motors are electrically reversible, feature an automatic thermal overload protector and a standard 48 frame motor casing size.

Motors feature reversing plugs, extended thru bolts, 36 inch leads and are designed for 370 volt capacitors.

Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life.

Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently.

The electrical reversing plug simplifies rotation direction changes and the wires are thirty inches long, making it easier for the contractor to install the new motor.

Run capacitor connections are insulated for increased safety and flag disconnects are provided.

Detailed and large wiring diagrams are on the motor and the motor carton, and also in the installation and safety instruction sheet.

AMP	1.3, 3
Diameter	1/2 in
Frame Size	48
Horsepower	1/2 hp
Length	12-3/4 in
Maximum Temperature	140
Origin	Global
Product Type	Condenser Motor
RPM	1075
RPM Range	900-1150
UL Listed	No
Volts	230V
